JERRY-I PATENT Portable Touch Screen Home Care Android FACTORY Bracket Multiparameter Fixed Patient Monitor Medical Instrument

1 piece
MOQ
JERRY-I PATENT Portable Touch Screen Home Care Android FACTORY Bracket Multiparameter Fixed Patient Monitor Medical Instrument
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: JERRY-I
Power Source: Electric
Warranty: 1 Year
After-sale Service: Online technical support
Power Supply Mode: Built-in Battery
Material: Metal, Plastic, Resin
Shelf Life: 5 years
Quality Certification: CE, ISO
Instrument classification: Class II
Safety standard: EN 149 -2001+A1-2009
Product name: 5 inch Patient Monitor
Parameters: ECG, SpO2, NIBP, PR, Temp, EtCO2 Optional
Display: TFT-LCD Display
Advantage: Portable, Touch Screen, Wall bracket
Works With: Mobile Phone
Auto power off: Auto Power
Application: Home care, Hospital, Adult, Children
Size: 20.9 x 10.4 x 4.75cm
Weight: 655g
Certificate: CE, ISO9001, ISO13485, MED
Información básica
Certificación: CE, ISO, CE, ISO9001, ISO13485, MED
Model Number: JERRY-I
Pago y Envío Términos
Packaging Details: EACH UNIT IS PACKED INTO ONE CARTON
Descripción de producto
Products Description

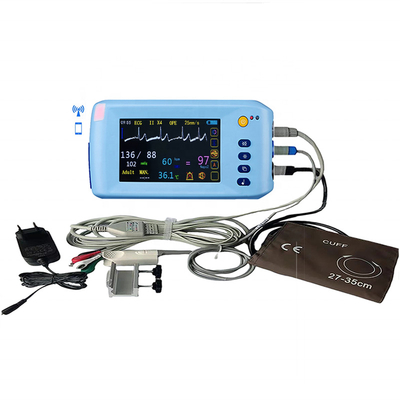

The JERRY-I monitor is a non-invasive, color palm patient monitor. It operates on AC or rechargeable battery power supply. It is suitable for monitoring adult,pediatric and neonate patients.
Parameters measured by the JERRY-I monitor include: electrocardiogram(ECG), non-invasive blood pressure (NIBP), arterial oxygen saturation (SpO2), pulse rate (PR), plethysmogram waveform (PLETH), pulse strength and temperature (TEMP).

    BACK VIEW


    1. Fixed Bracket Use

    The monitor can be installed on      the Ambulance stretcher, the          infusion frame and patient bed        easily if need.


    2. Rechargeable Li-ion Battery

    Up to 15 hours running time,            support AC and DC power.              Long time to use.

SIDE INTERFACE

1. USB Socket

Connected to the PC via an USB cable

2. Charger Socket

Connect to the power adapter of the monitor for charging

3. EtCO2 Interface

Accessory Optional

Manufacturing Technique

ECG General Specifications

Input: 5- lead ECG cable, standardAAMI cable connector
Lead Selection：I，II，III
Gain Selection：×1，×2，×4，×8
Sweep Speed: 12.5, 25, and 50 mm/s

Heart Rate

Measuring Range: 20 bpm～300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode:Audible and visual alarm

SpO2
SpO2%
Measuring Range:0%～100%
Resolution:1 %
Accuracy:±2 %(90%～99%), ±3 %(70%～89%),unspecified (0%～69%)

Pulse Rate
Measuring andAlarm Range:20～300bpm
Resolution: 1bpm
Accuracy: ±1bpm

NIBP
Method: Oscillometric
Mode: Manual,Auto, STAT
Measurement Rage: Adult 30 mmHg～255mmHg, Pediatric 30 mmHg～160mmHg
Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg
Pressure Resolution : 1mmHg

Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃～50℃
Accuracy: ±0.1℃

EtCO2(Optional)
Measuring Range: 0～150mmHg
Resolution: 1 mmHg
Accuracy: ±2mmHg@< 5.0% CO2
Size: 209mm×104mm×47.5mm
Net Weight: 655g

Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED
Charging indicator: Agreen LED

Power Supply

AC Power Adaptor
Input: 100～240VAC, 50/60Hz, 0.7A
Output: DC 5V, 1.5A

Battery
Li-ion rechargeable battery, 3.7V,/7200mAH
Operating Time: 15 hours with full battery capacity.
Recharge Time: 10 hours.

Environment

Temperature
Working: 0℃～45℃
Transport and Storage: -25℃～85℃

Humidity
Working: 30% ～85 %
Transport and Storage: 30% ～95 % (no condensation)

Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
Product packaging
Standard Packing List

Patient monitor main unit
5-lead ECG cable ( include surface TEMP probe)
Adult finger SpO2 sensor
Adult NIBP cuff
NIBP extension tube
AC power adaptor
Fixed bracket
The operator’s manual
Selectable Accessory
Pediatric NIBP cuff
Neonatal wrap SpO2 sensor
Pediatric finger Spo2 sensor
EtCO2 Sets
Certifications
JERRY MEDICAL has established a strict quality control system in accordance with EN ISO13485, ISO9001, EC-Certificate of Conformity, RoHS CERT standard, quality guaranteed.
Company Profile
Shanxi Jerry Medical Instrument Co., Ltd. was founded in 1998. We have professional R & D and production teams. It has been dedicated to the development, manufacture, sales and service of patient monitors, pulse oximeters, blood pressures, etc..
JERRY MEDICAL has a professional production team with more than 15 production lines. In the spirit of continuous development and innovation, we continue to improve the original products and launch new products every year. Welcome new and old customers to visit us.
Exhibition
These Products of JERRY MEDICAL have been sold in many countries such as USA, Germany, France, UK, Turkey, Spain, Mexico, Canada, India... And we've gotten positive responses for these customers.
FAQ
Q1: ARE YOU A FACTORY?

A1:Yes, we are, welcome to visit our company and factory. We produce and design medical & homecare more than 25 years.

Q2: CAN YOU OFFER OEM & ODM SERVICE?

A2:Yes, OEM and ODM are available for us. We have an experienced R & D team to develop and design new products.

Q3: WHAT CAN YOU BUY FROM US?

A3:Patient Monitor, Pulse Oximeter, Blood Pressure Monitor, Corresponding Accessory.

Q4: WHAT'S YOUR MOQ?

A4: One sample can be provided first for evaluation. Anyquantity is welcome here for non-customized products. As per customized products, please contact us for further confirmation.

Q5: WHAT'S THE LEAD TIME?

A5: Mass order: 5-15days depending on order quantity.
